Double Cone Mixer 100kg

Double Cone Mixer 100kg

Description : Double Cone Mixer is suitable for gentle blending of dense powder and granules. All contact parts, including Double Cone chamber, inlet port covers are made of stainless steel SS 304 and mirror polished. Stationary paddles inside the double cone improve blending efficiency up to 30% and save time.

Applications :

  • Pharmaceuticals: Powder, Granules, Pellets, Herbal Medicine
  • Cosmetics: Face powder, Body powder
  • Food: Seasoning, Health food, Flavor, Additives, Confectionery, Spices, Sugar, Salt, Starch
  • Agricultural: Animal Feed, Premix, Pesticides, Fertilizers
  • Chemical: Plastic powder, Polyester chips, Pigments and Color concentrates, Dyes, Resins
  • Other: Metal powders, Paints, Detergents, Minerals

Principle Features:

Bottom Lid for material removal, Stable structural design, Stainless steel 304-L body easy to Clean & easy to use, Maintenance Free.

MACHINE BAGS

Double Cone Mixer 100kg
Double Cone Mixer 100kg
Double Cone Mixer 100kg

Mixer Capacities

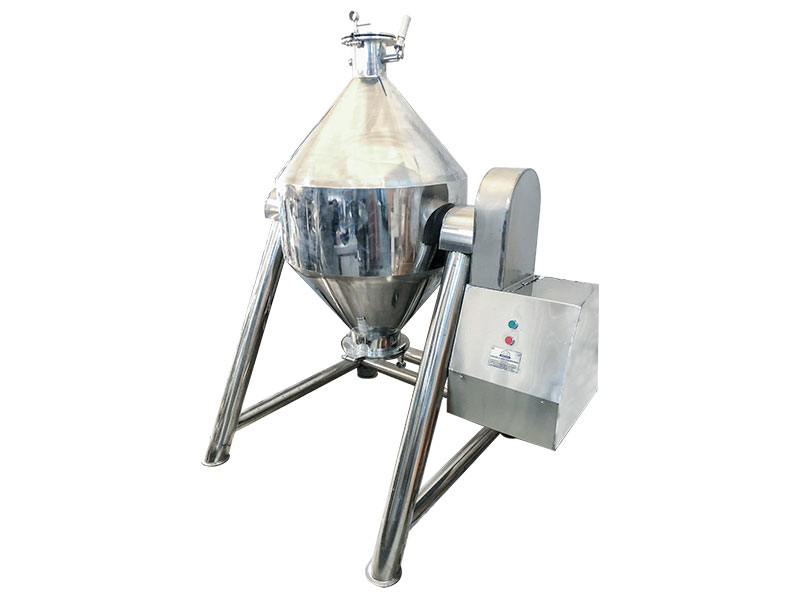

Double-Cone-Mixer 20kg
Double-Cone-Mixer 50kg
Double-Cone-Mixer 100kg
Double-Cone-Mixer 300kg
Double-Cone-Mixer 500kg

Specification

Double Cone Motion :

Rotary Type

Cone Filling Capacity :

180-200 litters

Cone Mixing capacity :

100 litters

Electric motor :

1.5hp /1440rpm / 50Hz , 3 Phase

Drum Material :

Stainless Steel 304-L/ 14-Gauge

Non-Contact parts :

Stainless Steel 201

Cladding :

22-Gauge

Drum Diemsnions(mm) :

D 762 x H 1016

Machine Dimensions (mm) :

L 1250 x W 1120 x H 1850

Description

Description:

Double Cone Mixer is suitable for gentle blending of dense powder and granules. All contact parts, including Double Cone chamber, inlet port covers are made of stainless steel SS 304 and mirror polished. Stationary paddles inside the double cone improve blending efficiency up to 30% and save time.
